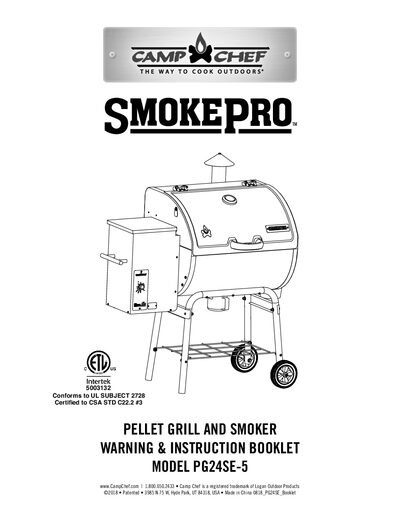

Instruction booklet for the Camp Chef PG24SE-5 pellet grill covering safety, assembly, operation, cleaning and troubleshooting.
This manual provides safety warnings, assembly steps, and operating instructions for the Camp Chef PG24SE-5 pellet grill and smoker. It includes detailed guidance on proper fuel use, clearances, and how to set the temperature dial.
Additional sections cover cleaning, chimney maintenance, troubleshooting common issues, and technical specifications such as fuel specifications, hopper capacity, and fuse requirements.
| Pellet fuel BTU | 8,000‑8,300 BTU/LB |
|---|---|
| Pellet ash content | 0.75‑0.85 % ash |
| Hopper capacity | ≈ 18 lb of pellets |
| Minimum clearance | 36 in (0.9 m) |
| Fuse rating | 4.0 A 125 V fast‑blow |
| Temperature range (standard) | 175 °F‑400 °F |
| Maximum temperature | up to 500 °F |
The grill should be thoroughly cleaned after every 50 hours of use or whenever grease or creosote buildup is noticed.
A red LED means the grill is in shutdown mode or that the flame has been extinguished.
Replace the blown fuse with a 4.0 A 125 V fast‑blow fuse (5 × 20 mm).
