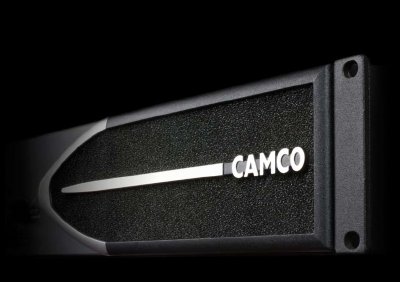

This manual covers installation, operation, troubleshooting, and specifications for the CAMCO VORTEX 6, 4, 2.6, and 200V Class H power amplifiers.
The CAMCO VORTEX series consists of professional Class H power amplifiers designed for mobile touring and fixed installations. The series includes models VORTEX 6, VORTEX 4, VORTEX 2.6, and VORTEX 200V, featuring a switch-mode power supply (SMPS) and an integrated microprocessor for control and monitoring.
This user manual provides comprehensive instructions on safety precautions, equipment introduction, installation procedures including wiring and cooling requirements, operational controls such as volume and gain settings, protection systems like clipping and thermal shutdown, and troubleshooting guides for common faults. This manual is written in Chinese.
The amplifier is designed for amplifying pulse audio signals and must be connected to speakers with an average impedance of at least 3 ohms.
The VORTEX 200V delivers 3.2 kW per channel at 4 ohms in bridge mono mode and 6.4 kW at 8 ohms in parallel mono mode.
You must set the volume to the minimum level before switching on the amplifier to prevent sudden high volume from damaging hearing or speakers.
