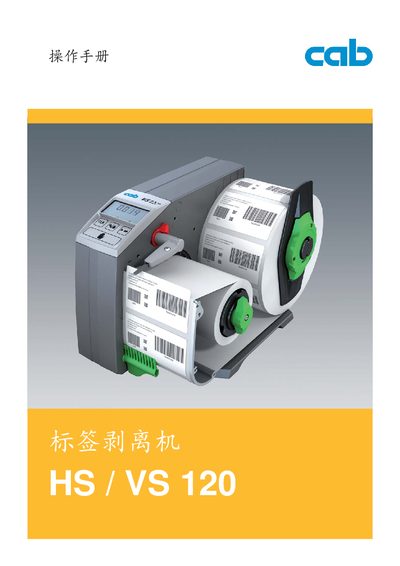

cab HS/VS 120 Label Stripping Machine Operation Manual

About this manual

This manual describes the safe use of the cab HS/VS 120 semi‑automatic label stripping machine. It outlines safety warnings, environmental guidelines, and the intended application of the equipment for stripping labels from rolls.

The document details installation procedures, including unpacking, power connection, and optional external control wiring. It also covers label roll installation, sensor adjustment, operation modes, speed setting, counter reset, and troubleshooting of common errors. This manual is written in Chinese.

What's inside

• Safety Instructions
• Installation
• Power Connection
• External Control Connection
• Label Roll Installation
• Operation Modes
• Speed Setting
• Error Troubleshooting
• EC Declaration of Conformity

Specifications

Frequently asked questions

What voltage range can the HS/VS 120 operate on?

The machine can be powered from 100 V to 240 V AC and will automatically detect the voltage.

How do I connect the power supply?

Use the supplied power cable, plug it into the machine’s power socket, and then connect the other end to a grounded outlet.

How can I reset the counter?

Press the reset button on the control panel to reset the counter.

What indicates an error condition on the display?

When an error occurs, the counter screen flashes and the corresponding LED blinks.
