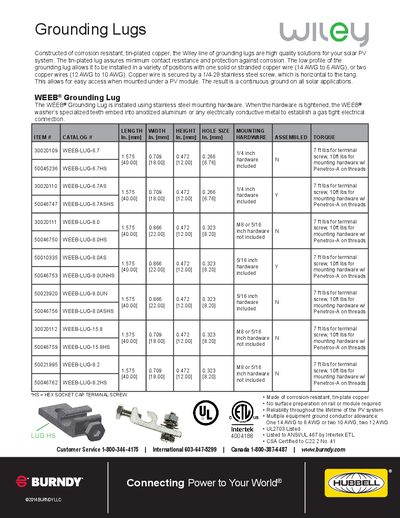

Technical specifications, dimensions, torque and compliance details for BURNDY WEEB® and Wiley grounding lugs.
BURNDY’s WEEB® and Wiley grounding lugs are constructed from corrosion‑resistant tin‑plated copper, providing low contact resistance and long‑term durability for solar PV and other grounding applications. The low‑profile design allows installation in tight spaces with either solid or stranded copper conductors.
The document lists detailed dimensions, hole sizes, torque requirements and certification information. It also specifies the allowable ground‑conductor sizes and the hardware needed for proper installation.
| Material | tin‑plated copper |
|---|---|
| UL Listing | UL2703 Listed |
| ANSI/UL 467 Listing | Listed by Intertek ETL |
| CSA Certification | C22.2 No. 41 |
| Ground Conductor Allowance | One 14 AWG‑6 AWG or two 10 AWG, two 12 AWG |
| Assembled Torque | 7 ft‑lb (terminal screw), 10 ft‑lb (mounting hardware) |
| Hole Size | 1/4 inch (standard), 5/16 inch (M8) optional |
They are made of corrosion‑resistant tin‑plated copper.
They are UL2703 listed, listed to ANSI/UL 467 by Intertek ETL, and CSA certified to C22.2 No. 41.
One conductor from 14 AWG to 6 AWG, or two conductors of 10 AWG, or two of 12 AWG.
7 ft‑lb for the terminal screw and 10 ft‑lb for the mounting hardware.
