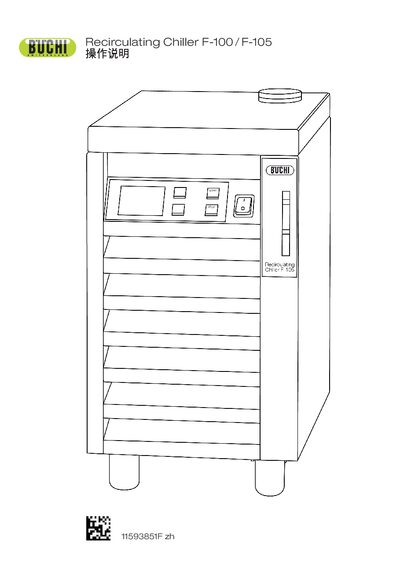

The BÜCHI F-100 / F-105 Recirculating Chiller Operation Manual provides safety guidelines, installation steps, technical specifications, and maintenance…
This manual describes safe operation of the BÜCHI F-100 / F-105 Recirculating Chiller, including user qualifications, proper use, and detailed safety warnings. It also outlines the required personal protective equipment and the built‑in safety features such as over‑heat protection.
The document covers installation location requirements, cooling‑water routing, electrical connections, and step‑by‑step start‑up procedures. Technical parameters, compatible accessories, and troubleshooting information are provided to help users maintain optimal performance. This manual is written in Chinese.
| Dimensions (W×L×H) | 280 mm × 420 mm × 500 mm |
|---|---|
| Weight | 28 kg (F‑100) / 30 kg (F‑105) |
| Maximum Power Consumption | 800 W |
| Cooling Power at 15 °C | 530 W |
| Temperature Range | ‑10 °C to +25 °C (fixed 10 °C option) |
| Power Supply | 230 VAC ± 10 % or 115 VAC ± 10 % 50/60 Hz |
| Coolant | R‑134a (280 g) |
| Pump Flow Rate | 2.5 L/min |
The chiller consumes up to 800 W at maximum load.
Operators must wear safety goggles, protective gloves, and laboratory clothing.
A minimum clearance of 40 cm should be kept at the front and back of the instrument.
The chiller uses R‑134a as the cooling medium.
