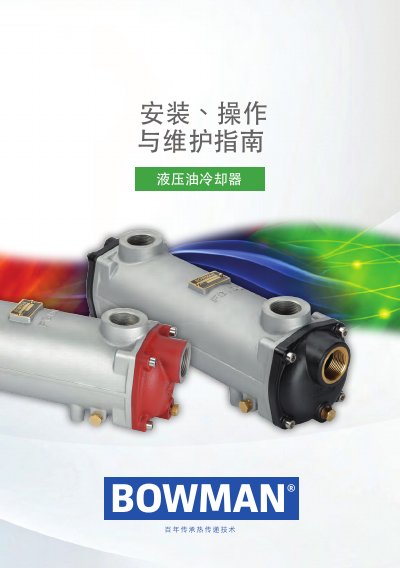

This guide provides safety instructions, installation steps, operation parameters, troubleshooting and maintenance for Bowman hydraulic oil coolers (EC‑RK…
The manual begins with safety warnings, detailing potential hazards, permissible pressure and temperature limits, and required qualifications for personnel. It then covers transport, storage, assembly, and proper connection of the cooler, including recommendations for filters, pipe sizing, and vibration protection.
Subsequent sections describe operating procedures, maximum flow rates for each series, commissioning steps, routine maintenance, troubleshooting of common corrosion issues, warranty information, spare‑part availability, CE marking compliance, and guidance on anode use. The document ends with contact details for Bowman support and a brief overview of the company's heat‑transfer solutions. This manual is written in Chinese.
| Maximum oil‑side pressure | 20 bar |
|---|---|
| Maximum water‑side pressure | 16 bar |
| Maximum water‑side temperature | 110 °C |
| Recommended filter permeability | 2.0 mm |
The oil side pressure must not exceed 20 bar.
The oil side may not exceed 120 °C and the water side may not exceed 110 °C.
O‑rings should be replaced during the annual cleaning and inspection of the pipe bundle.
