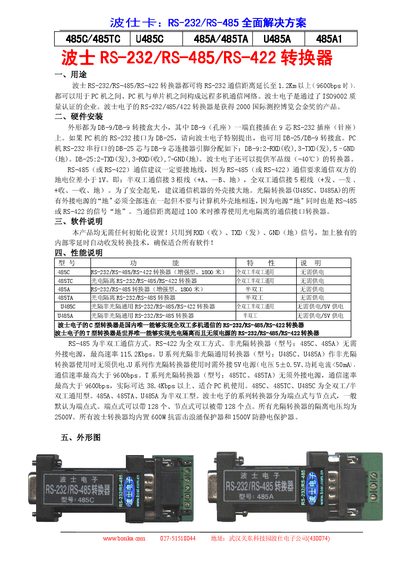

The Bosika RS-232/RS-485/RS-422 converter manual provides usage, installation, wiring, and performance details for models 485C, 485TC, U485C, 485A, 485TA…
This manual describes the purpose and application of Bosika's RS-232/RS-485/RS-422 converters, which can extend RS-232 communication distances to over 1.2 km at 9600 bps and support multi‑node networks between PCs and micro‑controllers. It includes hardware installation instructions, pin assignments for DB‑9 and DB‑25 connectors, and optional DB‑25/DB‑9 adapter usage.
The document also covers software operation (no initialization required), performance specifications such as maximum data rates, power requirements for optical‑isolated models, and protection features like 600 W surge protection and 1500 V electro‑static discharge protection. Wiring diagrams and line‑setting schematics for each model are provided. This manual is written in Chinese.
| Maximum RS-232 distance | 1.2 km (at 9600 bps) |
|---|---|
| Maximum data rate (non‑optical models) | 115.2 Kbps |
| Power requirement (optical‑isolated models) | 5 V, <50 mA |
| Isolation voltage | 2500 V |
| Surge and static protection | 600 W surge, 1500 V electro‑static |
