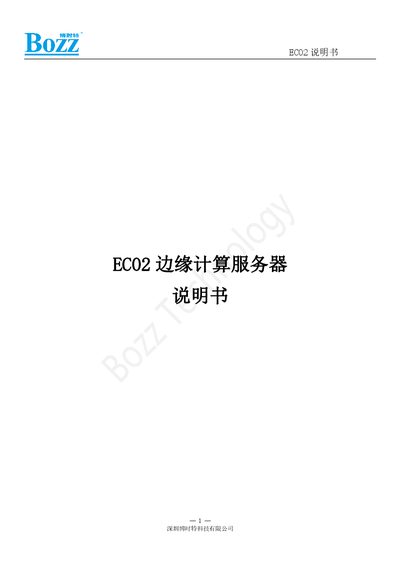

User manual for the Boshi Te EC02 edge computing server covering features, interfaces, specifications, and installation steps.
The EC02 edge computing server from Boshi Te is designed for AI video processing in smart security, medical, traffic, community, manufacturing, and industrial IoT applications. It features a powerful RK3399 CPU, dual RK1808 NPUs, and a full‑aluminum chassis with excellent thermal performance.
The manual provides detailed information on external interfaces, hardware dimensions, main configuration parameters, usage procedures, packaging contents, and installation precautions to ensure reliable operation and safe deployment. This manual is written in Chinese.
| CPU | RK3399 |
|---|---|
| GPU | Mali‑T864 |
| NPU | 4×RK1808 |
| Compute Power | 12T (3.0T‑24.0T optional) |
| Memory | 4 GB DDR + 1 GB×4 DDR + 16/32/64 GB eMMC |
| Operating System | Linux |
| Supported AI Frameworks | caffe, TensorFlow 1.3.2, PyTorch, ONNX, DaRKnet |
| Video Codec Support | H.265, H.264, WMV, MPEG‑1/2/4, VP8, VP9 |
| Video Output | HDMI |
| USB 3.0 Ports | 4 |
| Type‑C Port | 1 |
| Gigabit Ethernet | 1 |
| Power Input | DC 12 V / 2 A |
Connect a DC 12 V / 2 A power adapter to the server and plug it in; the device will start automatically.
The power cable should not be extended beyond 3 meters; use the dedicated extension line if a longer run is required.
Press the reset button located beside the device to force a restart.
