The BMI088 is a 6‑axis IMU combining a 16‑bit gyroscope and accelerometer with SPI/I²C interfaces and selectable ranges up to ±24 g and 2000 °/s.

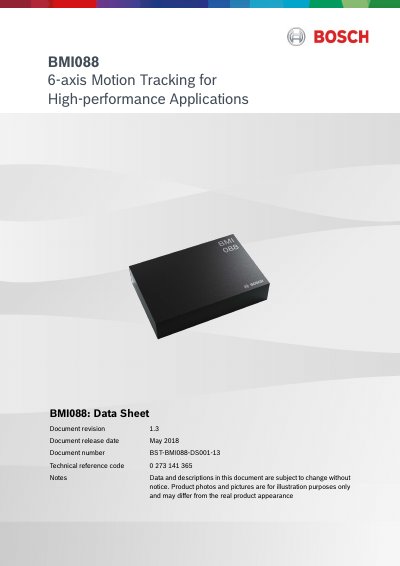

The Bosch Sensortec BMI088 is a compact 6‑axis motion‑tracking IMU that integrates a triaxial 16‑bit gyroscope and a triaxial 16‑bit accelerometer in a single LGA package. It is designed for high‑performance consumer applications that experience harsh vibrations, such as drones and robotics, and provides digital SPI or I²C communication with a wide VDDIO voltage range.
The datasheet details electrical specifications, selectable measurement ranges (±24 g for acceleration, 125‑2000 °/s for rotation), sensitivity values, temperature behavior, register maps, pin‑out diagrams, and handling guidelines. It also includes legal disclaimer, document history, and contact information for Bosch Sensortec.
| Supply Voltage (VDD) | 2.4 V – 3.6 V |
|---|---|
| I/O Supply Voltage (VDDIO) | 1.2 V – 3.6 V |
| Gyroscope Sensitivity (2000 °/s) | 16.384 LSB/°/s |
| Temperature Sensor Range | -104 °C – 150 °C |
The BMI088 provides both SPI and I²C digital interfaces for communication.
The device operates with a VDD of 2.4 V to 3.6 V and a VDDIO of 1.2 V to 3.6 V.
