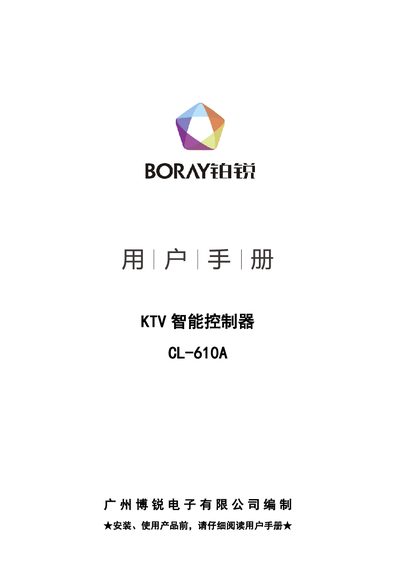

User manual for the Boray CL-610A KTV smart controller, covering specifications, wiring, and operation instructions.
The CL-610A is a KTV‑focused smart controller that integrates lighting, ventilation, service lights, and power‑amp control. It supports centralized control, computer programming, and backup/restore of settings, allowing both standalone operation and integration with a karaoke system.
The manual provides safety warnings, a list of supplied items, technical specifications, interface details, and step‑by‑step procedures for button operation, infrared learning for amplifiers, wall‑panel learning, and data transfer between controllers. This manual is written in Chinese.
| Input Voltage | 220 V |
|---|---|
| Maximum Load | 3500 W (resistive load, single route <1000 W) |
| Switch Control Channels | 6 |
| Exhaust Control Channels | 1 |
| Dimensions (L×W×H) | 280 mm × 150 mm × 52 mm |
The controller provides six switch control channels.
It operates on a 220 V AC power supply.
Settings can be backed up to a computer via the programming software and later restored from the PC.
