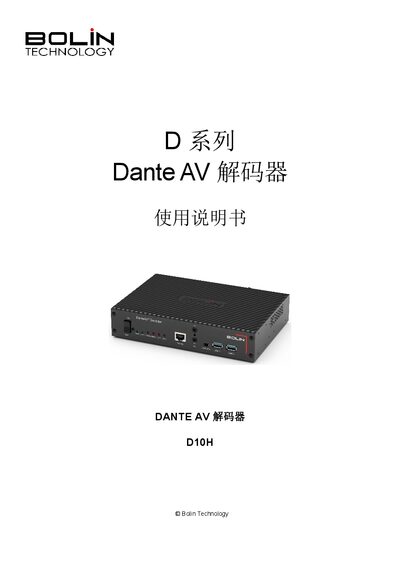

The BolinTechnology D10H DanteAV Decoder User Manual provides operation, installation, configuration, and safety information for the D10H model.
The D10H DanteAV Decoder is a compact, surface‑mountable device that supports HDMI 2.0 video output, 4K60 4:4:4 video, and up to eight audio channels. It offers low‑latency network video, POE or 12 V DC power, and full Dante audio‑video protocol compatibility.
This manual covers safety warnings, a detailed parts list, installation options (wall, rack, DIN‑rail, back‑mount), system configuration, connection diagrams, LED indicator meanings, USB and infrared interfaces, and troubleshooting guidance. This manual is written in Chinese.
| Video output | HDMI 2.0 |
|---|---|
| Maximum video resolution | 4K60 4:4:4 |
| Audio channels | 8 channels (44.1 kHz‑192 kHz) |
| Power options | POE 25 W (802.3at) or 12 V 4 A DC |
| Network interface | Gigabit Ethernet (1 Gbps) |
| USB ports | 2 ports for keyboard and mouse only |
Connect a keyboard controller to the RS‑422 port and use the standard Visca RS‑422 protocol to control the attached camera.
The decoder can be powered either by POE (25 W, 802.3at) or by a 12 V 4 A DC power adapter.
Only USB keyboards and mice are supported; USB flash drives or hard drives are not supported.
