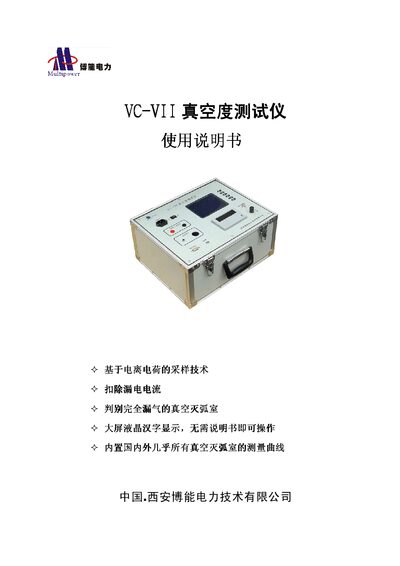

User manual for the Boineng VC‑VII vacuum degree tester, describing setup, safety, operation and specifications.
The VC‑VII vacuum degree tester, developed by Xi'an Boineng Power Technology Co., Ltd., is a high‑precision instrument for measuring the vacuum level of vacuum arc chambers. It uses ion‑charge sampling technology, a large LCD display, and includes 43 built‑in measurement curves covering most domestic and foreign chamber types.
The manual provides a company overview, configuration list, safety precautions, detailed connection diagrams for both fixed and removable coils, operation procedures, measurement results interpretation, and a comprehensive table of chamber curves. It also contains technical specifications and a parts list for service reference. This manual is written in Chinese.
| Measurement range | 1×10⁻⁵ ~ 1×10⁻¹ Pa |
|---|---|
| Measurement resolution | 10⁻⁵ Pa |
| Measurement error (mid‑range) | < 10 % |
| Allowed ambient temperature | -10 °C ~ +55 °C |
| Maximum air humidity | < 85 % RH |
| Power supply | AC 220 V ± 10 % 50/60 Hz |
| Dimensions (W×D×H) | 500 mm × 320 mm × 250 mm |
| Stored vacuum‑chamber curves | 43 |
It can measure vacuum from 1×10⁻⁵ Pa up to 1×10⁻¹ Pa.
Place the static contact of the vacuum chamber into the fixed coil, connect the high‑voltage line to the moving terminal and the signal line to the coil’s signal terminal.
Do not touch the high‑voltage output lines during power‑on or power‑off to avoid electric shock.
The tester contains 43 pre‑loaded measurement curves covering almost all domestic and foreign chamber types.
