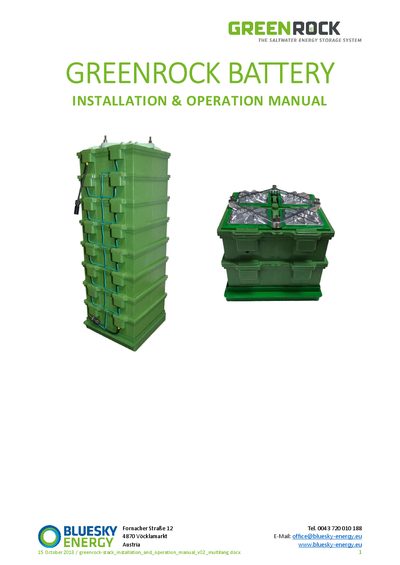

Installation and operation guide for BlueSky Energy GREENROCK BA-S1-48, BA-S1-24, and BA-S1-12 saltwater batteries, covering safety, wiring, commissioning…
This manual provides detailed instructions for receiving, installing, and operating GREENROCK saltwater batteries (models BA‑S1‑48, BA‑S1‑24, BA‑S1‑12). It includes safety warnings, handling procedures, site requirements, ventilation, and environmental limits to ensure safe and reliable deployment.
The document also covers electrical integration, wiring diagrams, over‑current protection, commissioning steps such as initial charge and voltage matching, operational limits, charge and discharge profiles, long‑term storage, recycling, and recommended record‑keeping practices. Technical support contact information is provided at the end.
| Max Recommended Charge/Discharge Current (BA‑S1‑48) | 20 A |
|---|---|
| Short‑Circuit Current Capability (BA‑S1‑48) | 140 A |
| Dimensions (H × W × D) and Weight (BA‑S1‑48) | 929 mm × 329 mm × 313 mm, 140 kg |
| Operating Temperature Range | -5 °C to +50 °C |
| Maximum Recommended Voltage Difference for Parallel Busing (BA‑S1‑48) | 5 Vdc |
A maximum of four batteries may be connected in series, which corresponds to a 48 V string voltage.
The batteries must be operated between –5 °C and +50 °C; storage outside this range may cause permanent damage.
