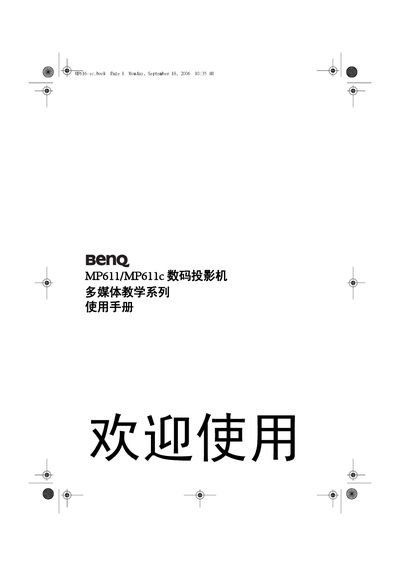

BenQ MP611/MP611c digital projector user manual with safety, installation, operation, maintenance and specifications.
This manual provides safety guidelines, unpacking checklist, and step‑by‑step installation instructions for the BenQ MP611/MP611c digital projector. It covers recommended mounting methods, power requirements, and environmental conditions for reliable operation.
The guide also details operating procedures, menu navigation, image adjustment, connectivity options, and maintenance tasks such as lamp replacement. A full specification table and troubleshooting section are included to help users achieve optimal performance. This manual is written in Chinese.
| Product name | 数码投影机 |
|---|---|
| Model | MP611/MP611c |
| Optical resolution | 800 x 600 (SVGA) |
| Display system | 1‑CHIP DMD |
| Lamp power | 200 W |
| Power input | AC100‑240 V, 4.0 A, 50‑60 Hz |
| Maximum power consumption | 285 W |
| Dimensions (W×H×D) | 278 mm × 94 mm × 219.5 mm |
| Weight | 5.9 lb (2.67 kg) |
| Video input connectors | RGB D‑sub 15‑pin, S‑Video Mini‑DIN, RCA, HDMI (component) ports |
| Audio input | Stereo mini‑jack |
| Relative humidity range | 10 % ~ 90 % (no condensation) |
It uses a 200 W lamp.
It includes an RGB D‑sub 15‑pin connector, an S‑Video Mini‑DIN port, RCA jacks, and component (HDTV) RCA inputs.
The unit measures 278 mm × 94 mm × 219.5 mm and weighs 5.9 lb (2.67 kg).
