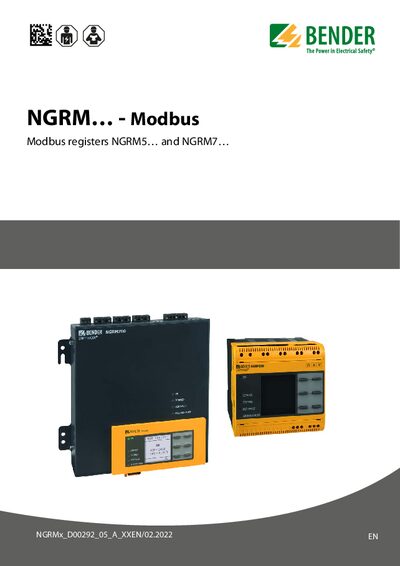

This Bender NGRMx datasheet lists Modbus register addresses, measured values, alarms, device and measurement parameters for NGRM series devices.
The document provides a complete description of the Modbus registers used by the NGRMx series, enabling access to device data via the Modbus protocol. It includes communication functions, register formats, and unit definitions.
It contains tables of measured values, alarm definitions, device parameters such as IP configuration and Modbus settings, and measurement parameters for configuring analog and digital outputs. The information is intended for engineers integrating the devices into monitoring or control systems.
| Modbus read function | function code 0x03 |
|---|---|
| Modbus programming function | function code 0x10 |
| Modbus TCP port | 502 |
| DHCP setting | 1:on 2:off |
| Modbus RTU baud rate options | 1:9600 2:19200 3:38400 4:57600 |
When DHCP is off, the IP address is entered directly in the IP address register (UINT32).
Set the Modbus RTU (baud rate) register to the desired option, e.g., value 1 for 9600 baud.
Alarm code 1 indicates a prewarning condition.
