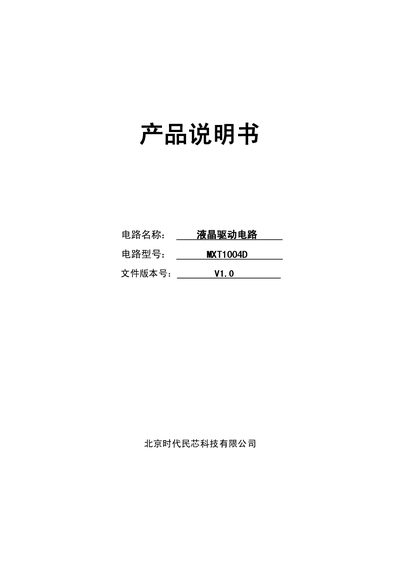

The manual describes the MXT1004D LCD driver circuit, its features, pin functions, electrical characteristics and typical application diagrams.
The MXT1004D is a timing controller for small analog TFT‑LCD panels, providing horizontal and vertical sync signals and supporting multiple display resolutions. It includes an internal PLL for clock synchronization and can operate from either a 5.0 V or 3.3 V supply.
The document contains sections on features, a 64‑pin QFP pin‑out, detailed pin descriptions, supported display modes, DC and AC electrical specifications, timing diagrams and typical application schematics. This manual is written in Chinese.
| Supply voltage (VDD) | -0.3 V to 7.0 V |
|---|---|
| Input voltage (VIN) | -0.3 V to VDD+0.5 V |
| Storage temperature | -65 °C to 150 °C |
| Package | 64‑pin QFP, 0.5 mm pitch |
It can be powered from either a +5.0 V or +3.3 V supply.
The device is provided in a 64‑pin QFP package with a 0.5 mm pin pitch.
It supports 960×234, 1200×234, 1440×234 and 1920×234 pixel modes.
