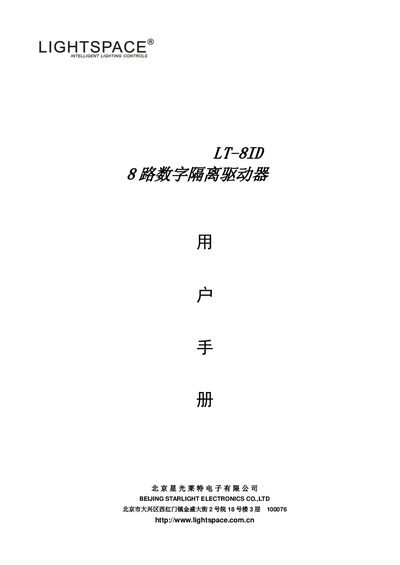

User manual for the LT‑8ID 8‑channel digital isolated DMX driver by Beijing Starlight Electronics, covering specs, installation, wiring and safety.
The LT‑8ID is a digital DMX‑512 signal amplifier and distributor that accepts one input and provides eight isolated outputs, protecting the system from high‑voltage back‑feed. It operates on 220 V AC power and is designed for use in DMX‑512 signal transmission and isolation.
The manual details panel layout, three installation methods (standard 1U, front‑back panel swap, wall‑mount), wiring requirements for DMX cables, and important safety precautions such as professional installation, grounding, and keeping power off when opening the chassis. This manual is written in Chinese.
| Channels | 1 input, 8 isolated DMX‑512 outputs |
|---|---|
| Power supply | 220V±10% 50Hz±2% AC |
| Dimensions (W×H×D) | 483 mm × 44 mm × 250 mm |
| Weight | 3.5 kg |
| Maximum humidity | ≤90 % RH at 25 °C |
| Maximum pressure | Atmospheric pressure < 10⁶ kPa |
It requires a 220 V AC supply with a tolerance of ±10 % at 50 Hz ± 2 %.
The device provides eight isolated DMX‑512 output channels from a single input.
The unit measures 483 mm wide, 44 mm high, and 250 mm deep.
Installation and service must be performed by qualified personnel, the chassis must not be opened while powered, a proper ground connection is required, and DMX cables must be kept separate from power cables.
