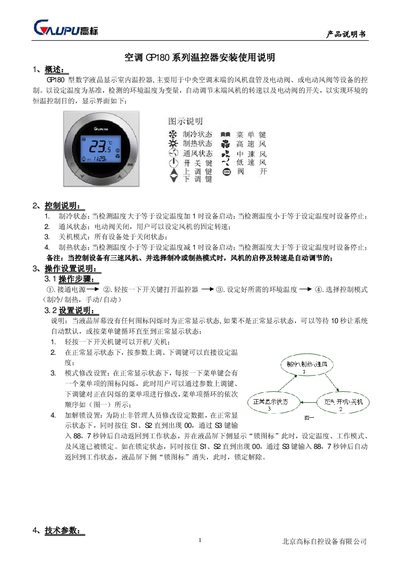

The Beijing Gaobiao GP180 thermostat installation manual provides setup steps, operation modes, wiring diagram, and technical specifications.
The GP180 series digital LCD thermostat is designed for the terminal units of central air‑conditioning systems, such as fan coils, electric valves, or motorized dampers. It controls fan speed and valve position to maintain a set room temperature based on the measured ambient temperature.
The manual covers installation precautions, wiring connections, operation settings, control modes (cooling, heating, ventilation, shutdown), and detailed technical parameters. It also explains how to lock/unlock settings and how to troubleshoot display or power issues. This manual is written in Chinese.
| Power Supply | AC220V±10% 50/60Hz |
|---|---|
| Power Consumption | ≤1W |
| Control Range | 0–99 ℃ |
| Output Power | ≤3A (resistive load) |
| Temperature Sensor | NTC 5 kΩ thermistor |
| Timer Shutdown Range | 0–12 h |
| Temperature Calibration Range | ±5 ℃ |
| Dimensions | 86 mm × 86 mm × 13 mm |
| Weight | 210 g |
In normal display mode, press the up or down parameter keys to directly set the temperature.
Press and hold S1 and S2 until "00" appears, then input 88 with S3; after 7 seconds the lock icon disappears and settings are unlocked.
It operates on AC220 V ±10 % at 50/60 Hz.
