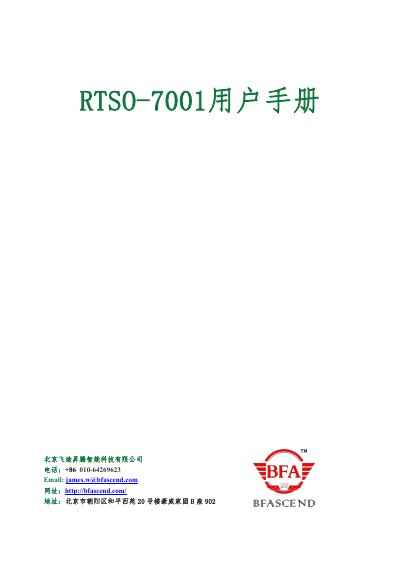

The manual provides product overview, interface definitions, installation, usage, safety, warranty and support information for the RTSO-7001 industrial…
The RTSO-7001 is an industrial carrier board based on the Huawei Atlas200 AI module, designed for edge‑computing applications. It supports a wide input voltage range (7‑28 V), operates from –40 °C to +85 °C, and offers multiple interfaces such as USB‑3.0, Ethernet, TF‑card, and fan connectors.
The document includes product features, hardware specifications, installation and usage instructions, safety precautions, warranty terms, and detailed technical support channels. It also outlines the process for after‑sales service, repair, and how to obtain driver packages and updates. This manual is written in Chinese.
| Dimensions | 87 mm × 50 mm |
|---|---|
| Power input voltage | +7 V ~ +28 V |
| Operating temperature | -40 °C ~ +85 °C |
| USB‑3.0 TYPE‑A ports | 2 ports, 5 Gbps, 1 A max |
| Gigabit Ethernet ports | 2 ports |
| TF‑card interface | 1 slot |
| Micro‑USB interface | Supports USB device mode |
| Fan connector | 5 V |
| Functional pins | I2C, UART, SPI, I2S, GPIO |
The board, core module and other accessories are covered for one year against non‑human damage; a 7‑day free replacement and up to 12 months free repair are also provided.
Store the board in an anti‑static bag, wear a discharge‑grounding wrist strap, work in a static‑safe area, avoid carpeted floors, and handle the board by its edges.
Support can be requested via the official website or email (recommended), the Taobao store’s chat, or the WeChat group, with contact details provided in the manual.
