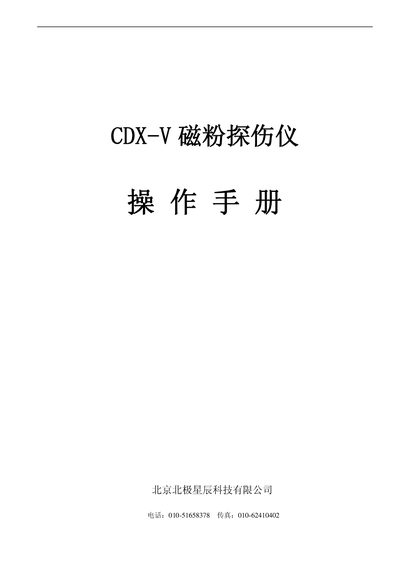

The CDX‑V magnetic particle flaw detector manual provides an overview, technical specifications, circuit diagram, installation, and operating instructions.
The CDX‑V magnetic particle flaw detector is a versatile nondestructive testing instrument that combines four probe types—rotating probe, electromagnetic yoke probe, horseshoe probe, and magnetic ring—to detect surface and near‑surface defects in welds, pipes, pressure vessels, and other components. It offers adjustable probe settings and works with both AC and DC power sources, making it suitable for a wide range of inspection scenarios.
The manual covers the device’s main technical parameters, detailed circuit schematic, step‑by‑step installation and usage procedures, safety precautions, and a complete list of accessories included with the system. It also provides warranty information and contact details for after‑sales support. This manual is written in Chinese.
| Lifting force (rotating probe) | 12 kg |
|---|---|
| Lifting force (magnetic yoke probe, AC) | >5 kg |
| Lifting force (magnetic yoke probe, DC) | 36 kg |
| Probe tip distance (rotating probe) | 125 mm |
| Probe working voltage | AC 36 V; DC 8 V |
| Power supply voltage | AC 220 V |
| Dimensions | 300 × 140 × 200 mm |
| Weight (main unit) | 9 kg |
The instrument requires an AC 220 V power supply.
Use switch S2 to choose between “rotating magnetic field”, “magnetic yoke AC”, or “magnetic yoke DC” modes.
