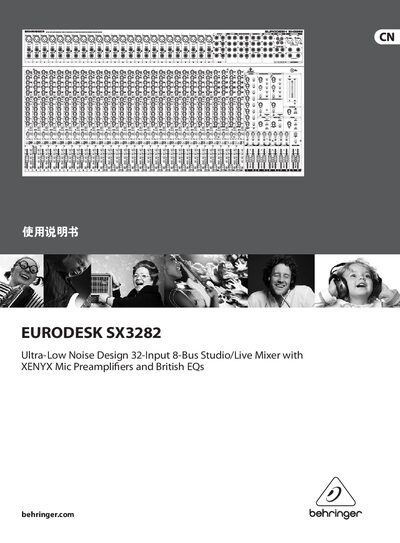

The Behringer EURODESK SX3282 mixer user manual provides safety guidelines, setup instructions, and technical specifications for the 32‑channel studio/live…
This manual introduces the EURODESK SX3282 mixing console, describing its 32 input channels (24 mono, 4 stereo), 8‑bus architecture, and British‑style EQs. It covers safety warnings, warranty terms, and detailed explanations of each section of the console, including input channels, subgroups, main control area, and routing.
The document also provides step‑by‑step setup guidance, wiring diagrams, and parameter tables for gain ranges, frequency response, and power requirements. Technical background and optional modifications are explained, helping users achieve optimal sound quality in both studio and live environments. This manual is written in Chinese.
| Mic input type | Electronic balanced, discrete circuit |
|---|---|
| Mic preamp gain range | +10 dB – +60 dB |
| Maximum mic input level | +12 dBu |
| Line input gain range | 0 dB – +40 dB |
| Total harmonic distortion + noise | 0.007 % @ +4 dBu, 1 kHz |
| Frequency response (input‑to‑output) | 20 Hz – 40 kHz ±1 dB |
| Dimensions (H × W × D) | 3.5 × 40 × 20.7 in (≈ 90 × 1015 × 527 mm) |
| Weight | 37.2 lb (≈ 16.9 kg) |
It operates on 100‑240 V (50/60 Hz) AC mains power.
The console provides 32 input channels: 24 mono and 4 stereo.
The THD+N is 0.007 % at +4 dBu, 1 kHz.
