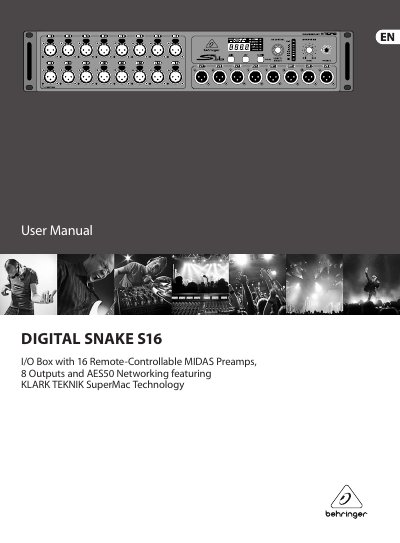

The Behringer S16 Digital Snake User Manual provides setup, configuration, and operation instructions for the 16‑in/8‑out stagebox.
The S16 Digital Snake is a 16‑input, 8‑output stagebox that uses AES50 networking with KLARK TEKNIK SuperMac technology. It can operate as a stand‑alone unit, be cascaded with up to three S16s, or work together with Behringer X32 mixers and P16 personal monitoring systems. The manual covers safety instructions, hookup diagrams, configuration options, and MIDI communication.
Key sections include safety warnings, detailed callouts of front‑panel controls, wiring diagrams, configuration modes (Standard, Cascaded, Standalone, SPLITTER), MIDI control details, and a full specifications table for audio performance, power consumption, and physical dimensions.
| Audio conversion resolution | 24‑bit @ 44.1/48 kHz |
|---|---|
| Dynamic range | 114 dB |
| Networked I/O latency | 1.1 ms |
| Power consumption | 45 W |
| Physical dimensions | 482 × 225 × 89 mm |
| Weight | 4.7 kg |
The S16 provides 16 XLR inputs and 8 XLR outputs.
It uses AES50 networking with KLARK TEKNIK SuperMac technology.
Yes, up to three S16 units can be cascaded to provide up to 48 channels of bidirectional audio.
