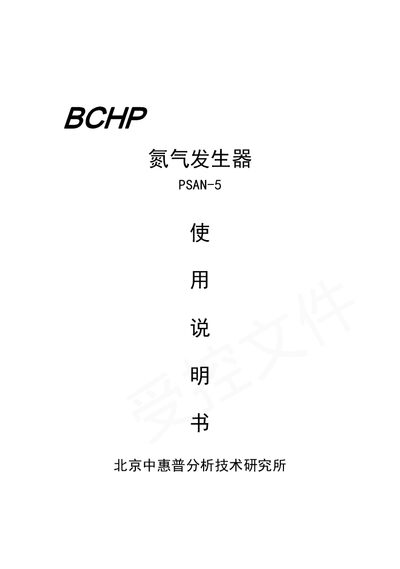

The BCHP PSAN-5 nitrogen generator user manual provides installation, operation, technical specifications, and troubleshooting guidance.
The PSAN-5 is a nitrogen generator that uses double‑tower pressure swing adsorption technology with high‑efficiency carbon molecular sieves to produce high‑purity nitrogen for applications such as evaporative light scattering detectors and nitrogen blow instruments. It features an oil‑free compressor and fully automatic operation.
This manual covers the instrument’s parts, installation steps, operating procedures, working principle, key technical parameters, warranty information, wiring diagrams, and a detailed troubleshooting guide for common fault conditions. This manual is written in Chinese.
| Nitrogen purity | 99.5%–99.999% |
|---|---|
| Nitrogen flow rate | 0–5 L/min |
| Output pressure | 0–0.4 MPa |
| Power supply | 220 V ± 10 % 50 Hz |
| Power consumption | 750 W |
| Operating temperature | 1 °C–40 °C |
| Relative humidity | < 85 % |
| Dimensions | 450 × 400 × 900 mm |
| Net weight | ≈ 40 kg |
