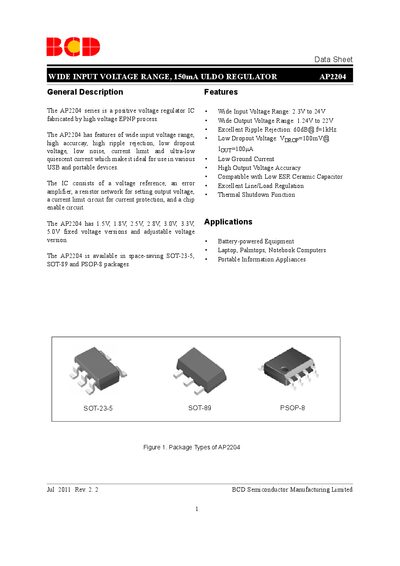

The AP2204 is a low‑dropout regulator with a 2.3 V‑24 V input range, multiple fixed/adjustable outputs, and SOT‑23‑5, SOT‑89, PSOP‑8 packages.
The AP2204 series is a positive‑voltage ULDO regulator designed for USB and portable devices. It offers a wide input voltage range, low dropout, low quiescent current, and built‑in current limiting and thermal shutdown.
The device is available in fixed‑voltage versions (1.5 V to 5 V) and an adjustable version, packaged in space‑saving SOT‑23‑5, SOT‑89, or PSOP‑8. Detailed electrical characteristics, ordering information, and mechanical dimensions are provided for designers.
| Input voltage range | 2.3 V to 24 V |
|---|---|
| Output voltage range | 1.24 V to 22 V |
| Maximum output current | 250 mA |
| Quiescent (ground) current | ≤0.5 µA at 100 µA load |
| Thermal resistance (θJA) – SOT‑23‑5 | 250 °C/W |
| Package options | SOT‑23‑5, SOT‑89, PSOP‑8 |
The AP2204 operates with an input voltage from 2.3 V up to 24 V.
The regulator is offered in three surface‑mount packages: SOT‑23‑5, SOT‑89, and PSOP‑8.
The device can deliver up to 250 mA of output current.
