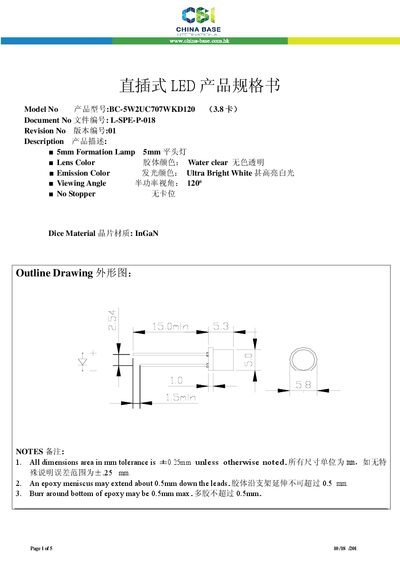

The BC-5W2UC707WKD120 LED specification sheet details its electrical, optical, and reliability parameters.
This document describes the BC-5W2UC707WKD120 straight‑insert LED, a 5 mm ultra‑bright white lamp with a 120° viewing angle. It lists the device’s electrical ratings, optical characteristics, and color coordinates.
The sheet also provides the reliability test standards and environmental limits, including temperature cycles, humidity exposure, solder‑heat resistance, and vibration/drop tests, ensuring the component meets industry durability requirements. This manual is written in Chinese.
| Forward Current (IF) | 30 mA |
|---|---|
| Peak Forward Current (IFP) | 120 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 108 mW |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +100 °C |
| Forward Voltage (typical @20 mA) | 2.8 V ~ 3.6 V |
| Luminous Intensity (typical @20 mA) | 700 mcd |
| Viewing Angle (half power) | 120° |
The LED is rated for a continuous forward current of 30 mA.
It can operate from –40 °C up to +85 °C.
Typical forward voltage ranges from 2.8 V to 3.6 V at 20 mA.
The LED undergoes temperature cycling, thermal shock, high humidity heat cycles, high‑temperature storage, solder‑heat resistance, vibration, and drop tests according to JEITA and MIL‑STD standards.
