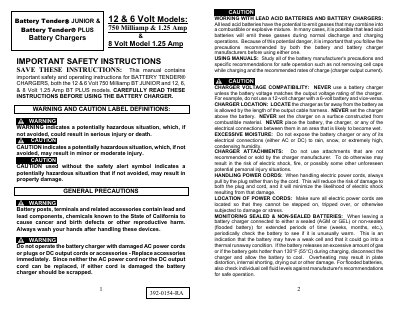

Safety and operating instructions for Battery Tender Junior and Plus lead‑acid battery chargers.
This manual provides important safety warnings, handling precautions, and step‑by‑step operating instructions for the Battery Tender Junior (12 & 6 V, 750 mA) and Plus (12 , 6 , 8 V, 1.25 A) battery chargers. It covers proper charger placement, cable handling, and personal protective measures when working with lead‑acid batteries.
The document also details charger features such as automatic charging modes, status indicator lights, special protections, troubleshooting tips, and a specification summary for both models, helping users safely charge and maintain their batteries.
| Input Voltage / Frequency | 100 to 132 VAC / 60 Hz |
|---|---|
| Maximum Input Current | 0.43 A (Plus) or 0.36 A (Junior) |
| Typical Output Current | 1.25 A (Plus) or 0.75 A (Junior) |
| DC Output Voltage | 12 V, 8 V, 6 V (Plus) or 12 V, 6 V (Junior) |
| Maximum Operating Temperature | 50 °C |
| Junior Case Dimensions | 3.313 in L × 2.313 in W × 1.875 in H |
| Plus Case Dimensions | 4.875 in L × 3.25 in W × 2.875 in H |
| Junior Shipping Weight | ≈ 1.8 lb (0.8 kg) |
| Plus Shipping Weight | ≈ 3.0 lb (1.4 kg) |
An extension cord may be used only if absolutely necessary and must match the charger’s plug size, be properly wired, and meet the minimum conductor size shown in the table.
Wear complete eye protection and protective clothing, and remove metal jewelry to avoid short‑circuit hazards.
