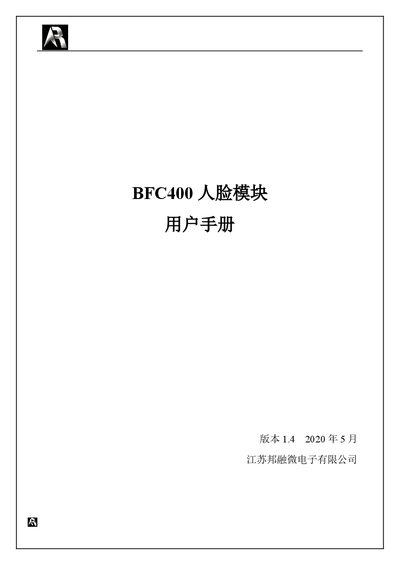

User manual for the Bangrong BFC400 face module, covering features, technical specs, hardware interfaces and usage instructions.
The BFC400 face module from Bangrong provides face image processing, template extraction, matching, search and storage. It is designed for engineers to integrate facial recognition into various applications such as access control, safes, and PC‑linked systems.
The manual includes a detailed overview, technical parameters, hardware interface definitions (USB, UART, LED, programming port), step‑by‑step operation guides, product dimensions and procurement contact information. This manual is written in Chinese.
| Module size | 61.9 mm (L) × 36.0 mm (W) |
|---|---|
| Image size | 480 × 640 (default) |
| Capture speed | 30 frames / second |
| Operating voltage | +5 V |
| Operating temperature | -20 °C ~ 55 °C |
| Communication baud rate | 115200 bps |
The USB (J1) port is a secondary development interface that uses Bangrong's BR protocol for USB communication with the BFC400 module.
