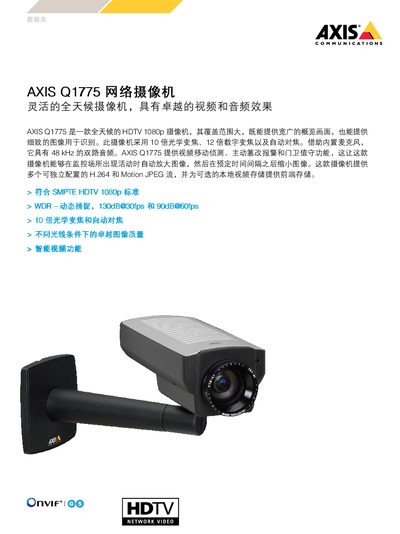

This document provides technical specifications and features for the Axis Q1775, a 1080p all-weather network camera with optical zoom and intelligent video…
The Axis Q1775 is an all-weather HDTV 1080p network camera designed to deliver excellent video and audio quality in various lighting conditions. It features a 1/2.8" CMOS sensor, a 3.8–38mm lens with 10x optical zoom, and supports WDR dynamic capture for clear images from wide angles to telephoto views. This manual is written in Chinese.
| Sensor Type | 1/2.8" Progressive Scan CMOS |
|---|---|
| Lens Focal Length | 3.8 – 38 mm |
| Optical Zoom | 10x |
| Digital Zoom | 12x |
| Audio Sampling Rate | 48 kHz (Dual) |
| Power Supply (PoE) | IEEE 802.3af/802.3at |
Yes, it supports ONVIF Profile G and Profile S.
The AXIS Q1775 is an all-weather HDTV 1080p camera designed to provide both wide overview images and detailed images for identification.
The camera measures 59 x 79 x 182 millimeters (2.3 x 3.1 x 7.1 inches) without a sun shield.
