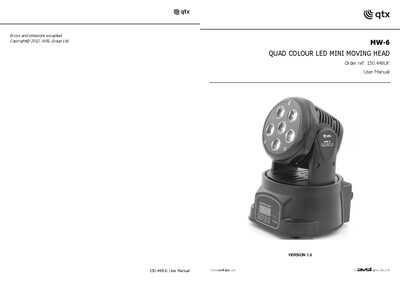

The AVSL MW-6 Quad Colour LED Mini Moving Head User Manual provides setup, operation, DMX control, safety and maintenance instructions.
The MW-6 Quad Colour LED Mini Moving Head is a compact, lightweight fixture that uses 4‑in‑1 RGBW Quad LED technology for high‑quality colour mixing. It offers auto and sound‑to‑light modes, 8‑channel DMX control, and a 25° beam angle, making it suitable for small stages, bars, nightclubs and mobile DJ setups.
This manual covers unpacking, installation and mounting, safety precautions, technical specifications, DMX programming, power connection, troubleshooting, fuse replacement and routine maintenance to ensure reliable performance and long service life.
| Voltage | 230Vac, 50Hz |
|---|---|
| Power Consumption | 80W |
| LED Type | 6 x 4‑in‑1 Quad LED RGBW |
| Fuse | F3A |
| Beam Angle | 25° |
| LED Lifespan | 10,000 hrs |
| Pan Range | 0‑540° |
| Tilt Range | 0‑270° |
| Dimensions | 178 x 173 x 250 mm |
| Weight | 2.8 kg |
Use the LED display controls to select the address setting and adjust the DMX address as shown on the display.
Clean the fixture at least twice a month, or every 20 days in dusty or smoky environments, using a soft brush or vacuum and a mild cleaning solution.
Disconnect the unit from the mains, remove the fuse holder, replace the fuse with the rating indicated on the safety label, and reinstall the holder.
