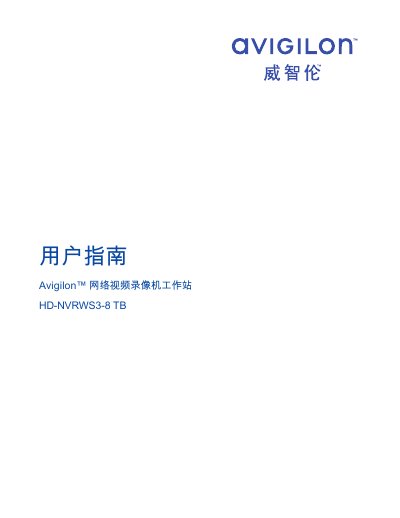

User guide for the Avigilon HD‑NVRWS3‑8TB NVR workstation covering installation, licensing, configuration and LED indicators.
The Avigilon HD‑NVRWS3‑8TB Network Video Recorder Workstation is a pre‑loaded Windows‑based system that integrates with Avigilon ControlCenter software for video surveillance. This guide walks you through hardware overview, installation steps, initial Windows setup, and how to connect peripherals such as monitors, USB devices, and network cables.
It also explains how to activate and manage the Avigilon ControlCenter license, configure recording schedules, add users and groups, and customize advanced settings like camera parameters, alerts, and email notifications. LED indicator meanings and full technical specifications are provided for reference. This manual is written in Chinese.
| Operating System | Windows Embedded Server 2007 |
|---|---|
| Hard Disk Capacity | 1–500 GB |
| Dimensions (H × W × D) | 175 mm × 360 mm × 435 mm |
| Weight | 9.24 kg |
| Input Power | 100–240 VAC, 50/60 Hz, auto‑switch |
| Power Consumption | 290 W |
| Operating Temperature | 5 °C to 35 °C |
| Storage Temperature | -40 °C to 65 °C |
| Relative Humidity | 20 % to 80 % (non‑condensing) |
| Certifications | UL, cUL, CE, RCM, CCC, EAC, VCCI, KC, BSMI, NRCS |
Avigilon provides a three‑year limited warranty against material and workmanship defects for the original purchaser.
