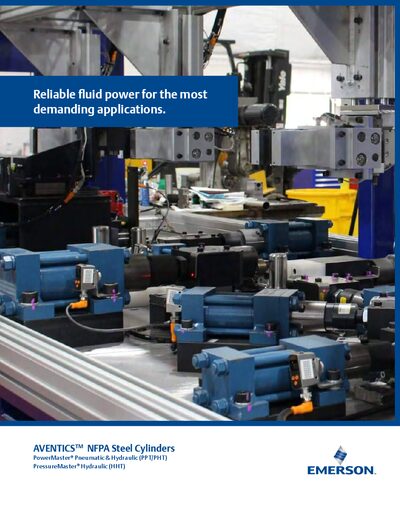

The AVENTICS manual provides specifications, options, mounting styles, and ordering information for PowerMaster pneumatic & hydraulic and PressureMaster…
This manual describes AVENTICS NFPA‑rated steel cylinders, covering the PowerMaster PPT pneumatic and PHT hydraulic series as well as the PressureMaster HHT high‑pressure hydraulic series. It includes detailed product features, dimensions, and the full range of options and accessories.
The document also contains mounting‑style indexes, dimensional data for bore sizes 1‑1/2" to 14", ordering instructions, and service information such as rod‑end options, port types, and seal material choices.
| Maximum pneumatic pressure | 250 psi |
|---|---|
| Maximum hydraulic pressure (PHT) | 1500 psi |
| Bore size range | 1‑1/2" to 14" (standard) |
| Standard seal temperature range | -65 °F to +200 °F |
| Optional Viton seal temperature range | -15 °F to +400 °F |
The PowerMaster PHT hydraulic cylinders are rated up to 1500 psi.
Standard Buna‑N seals operate from –65 °F to +200 °F, and optional Viton® seals are available for –15 °F to +400 °F.
Bore sizes range from 1‑1/2" to 14" as standard.
The cylinders include 21 standard NFPA mountings.
