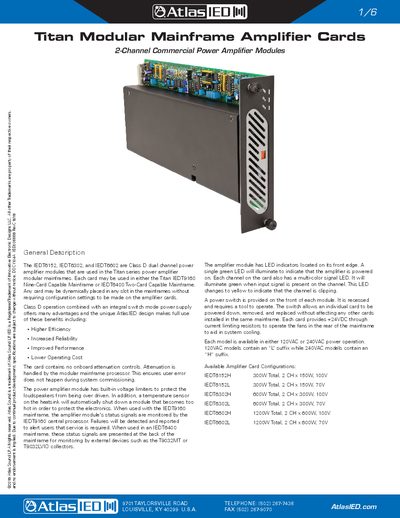

Technical specifications for AtlasIED Titan modular amplifier cards (IEDT6152‑6602 series) used in commercial audio systems.
The AtlasIED Titan Modular Mainframe Amplifier Cards are Class D dual‑channel power amplifier modules designed for the Titan series modular mainframes. Each card can be installed in any slot of the IEDT9160 or IEDT6400 mainframe without configuration changes, and features built‑in voltage limiters, temperature protection, and LED status indicators.
The document provides detailed electrical specifications, dimensions, environmental limits, and compliance information for six models (IEDT6152H/L, IEDT6302H/L, IEDT6602H/L), covering power ratings, harmonic distortion, frequency response, and power consumption.
| Total Power Output (IEDT6602H) | 1200 W total, 2 × 600 W, 100 V |
|---|---|
| Total Harmonic Distortion | < 0.01 % |
| Signal‑to‑Noise Ratio | > 85 dB |
| Frequency Response | 20 Hz – 20 kHz |
| Damping Factor (20 Hz‑400 Hz) | ≈ 300 (IEDT6152 series) |
| Power Consumption (Active Mode – No Signal) | 234 mA |
| Operating Temperature Range | +32 °F – +104 °F (0 °C – 40 °C) |
| Dimensions (W × H × D) | 1.8" × 6.8" × 12.5" |
| Weight | 4 lb (1.8 kg) |
The IEDT6602H delivers a total of 1200 W, with two channels each rated at 600 W at 100 V.
Each card includes built‑in voltage limiters and a temperature sensor that shuts the module down if it becomes too hot.
They operate between +32 °F and +104 °F (0 °C to 40 °C).
