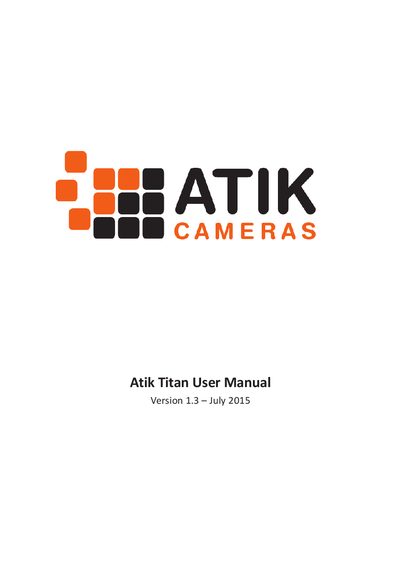

The Atik Titan camera user manual provides setup, operation, technical specs, high‑speed imaging guidance, and warranty information.
This manual introduces the Atik Titan astrophotography camera, describing its components, power options, USB interface, and cooling system. It guides users through installation, basic operation, and maintenance.
Key sections cover the package contents, detailed camera parts, technical specifications, planetary high‑speed imaging procedures, and warranty and service information. The document also includes safety notices and disposal instructions.
| Image sensor | Sony ICX424 |
|---|---|
| Resolution | 659 x 494 |
| Pixel size | 7.4 µm x 7.4 µm |
| ADC | 16‑bit |
| Readout noise (typ.) | 7 e‑ |
| Cooling delta | -20 °C |
| Maximum frame rate | 15 fps |
| Power requirements | 12 V DC, 0.55 A |
| Weight | 350 g |
| Backfocus distance | 12 mm |
| Front thread | M42 × 0.75 mm |
| USB interface | USB 2.0 |
| Cooling method | Peltier thermoelectric element |
| Power consumption (cooler on) | 550 mA at 12 V DC |
It can capture up to 15 frames per second.
The camera uses a Sony ICX424 sensor.
It uses a Peltier thermoelectric element that cools the camera about 20 °C below ambient.
The camera draws only 550 mA at 12 V DC when the cooler is active.
