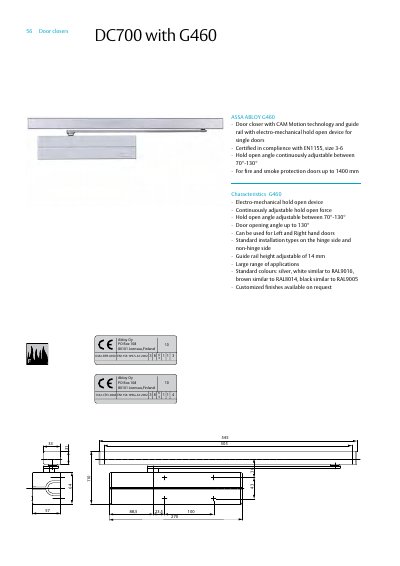

Product information for the ASSA ABLOY DC700 door closer with G460 hold open device, certified for fire and smoke protection doors.
This document provides product information for the ASSA ABLOY DC700 door closer equipped with the G460 electro-mechanical hold open device. The system features CAM Motion technology and a guide rail suitable for single doors up to 1400 mm wide. It is certified in compliance with EN1155 and EN1154 standards for fire and smoke protection applications.
| Voltage supply | 24 V DC |
|---|---|
| Max. consumption | 60 mA |
| Door widths | up to 1400 mm |
| Hold open angle | 70°-130° |
| Weight | 1,2 kg |
| Height | 31 mm |
| Depth | 33 mm |
| Length | 545 mm |
Yes, it is certified in compliance with EN1155 for fire and smoke protection doors.
The hold open angle is continuously adjustable between 70° and 130°.
Yes, it can be used for Left and Right hand doors.
