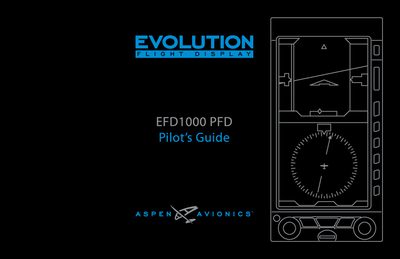

The Aspen EFD1000 Primary Flight Display Pilot’s Guide provides operating instructions, feature descriptions, and customization options for the EFD1000 PFD.
This guide covers the system overview, controls, display functions, and flight operation procedures for the Aspen EFD1000 Primary Flight Display. It includes detailed sections on the display architecture, knob functions, hot keys, menu navigation, and customization of display settings.
Additional chapters describe emergency and abnormal procedures, software version information, hardware specifications, and appendices with certification data and microSD card handling. The document is organized with a table of contents, index, and revision history to aid quick reference.
| Width | 3.50 in. |
|---|---|
| Height | 7.00 in. |
| Display Type | 6.0 in. Diagonal TFT Active Matrix LCD (400x760) |
| Operating Temperature | -20°C to +55°C |
| Input Voltage | +8 to +32 V DC |
| Maximum Un‑Pressurized Altitude | 35,000 ft. |
| Maximum Pressurized Altitude | 55,000 ft. |
The display operates from –20 °C to +55 °C.
It accepts a DC input voltage of +8 V to +32 V.
The unit can operate up to 35,000 ft un‑pressurized and 55,000 ft pressurized.
It uses a 6.0‑inch diagonal TFT active‑matrix LCD with a resolution of 400 × 760 pixels.
