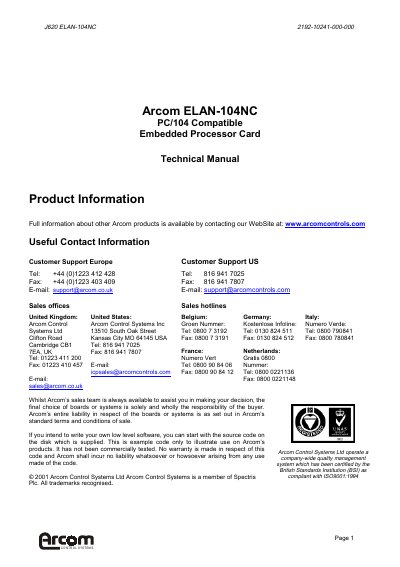

This manual covers the operation, setup, and detailed hardware descriptions for the Arcom ELAN-104NC PC/104 compatible embedded processor card.
The Arcom ELAN-104NC is a Eurocard sized, PC/AT compatible processor board designed to be embedded into OEM equipment. It features an AMD Elan SC400 100MHz processor, up to 16MB of EDO DRAM, and includes integrated silicon disk drive, Ethernet controller, and high performance flat panel VGA controller. The board supports various standard PC/AT features plus embedded additions like a RealTek RTL8019A Ethernet controller and Intel Strata Flash.
| CPU | AMD Elan SC400 100MHz processor |
|---|---|
| Cache | 8K L1 write-back cache |
| System Memory | Up to 16MB EDO DRAM |
| Silicon Disk | Up to 8MB Intel Strata Flash |
| Video Memory | 1MB EDO DRAM |
| Video Interface | 32-bit VESA bus interface |
| Ethernet Controller | RealTek RTL8019A 10-BaseT |
| Serial Ports | 2 x RS232 and 1 x RS422/485 |
| Parallel Port | High speed parallel port, SPP/EPP/ECP modes |
The board is available in standard variants including the ELAN-104NC-100-M16-F8 (100MHz CPU, 16MB DRAM, 8MB Flash) and the ELAN-104NC-100-M4-F4 (100MHz CPU, 4MB DRAM, 4MB Flash).
The BIOS setup program can be invoked during the power on sequence by pressing any key when prompted during boot-up.
Yes, the ELAN-104NC supports up to two standard floppy disk drives connected via a 34-way twisted ribbon cable.
