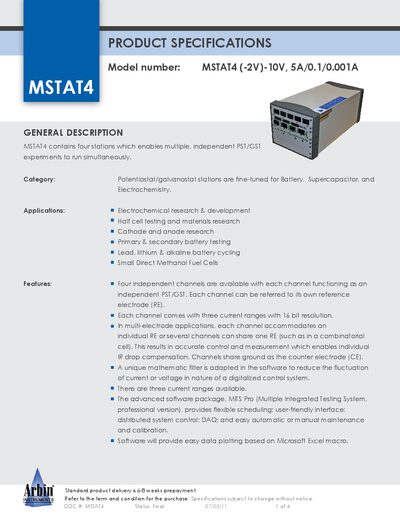

The Arbin MSTAT4 is a four‑channel potentiostat/galvanostat station with a –2 V to +10 V range, up to 5 A current, and optional software features.
The MSTAT4 is a potentiostat/galvanostat station designed for battery, supercapacitor and electrochemical research. It offers four independent channels, each capable of operating as a separate PST/GST with its own reference electrode and voltage‑clamp functionality.
Hardware specifications include a –2 V to +10 V voltage range (‑5 V to +5 V optional), up to ±5 A current, 16‑bit resolution, and a 10 GΩ input impedance. The system is air‑cooled, provides TCP/IP networking, and can be expanded with auxiliary modules for voltage, temperature, pressure and pH inputs.
| Number of channels | 4 |
|---|---|
| Voltage range (standard) | -2 V to +10 V |
| Voltage range (optional) | -5 V to +5 V |
| Maximum current | ±5 A |
| Current ranges | High 5 A ±2 mA, Medium 100 mA ±40 µA, Low 1 mA ±400 nA |
| Input impedance | ~10 GΩ |
| Resolution | 16 bit (0.0015 % FSR) |
| Maximum continuous power per channel | 50 W |
| Dimensions (W×D×H) | 12.5 in × 25 in × 10.5 in |
| Weight (estimated) | < 100 lb |
| Input power | 110 V AC or 220 V selectable |
| Voltage control accuracy | ±4 mV (0.02 % FSR) |
The MSTAT4 provides four independent channels.
The standard voltage range is –2 V to +10 V, with an optional –5 V to +5 V range.
Each channel can source or sink up to ±5 A.
Yes, it provides TCP/IP access for networking.
