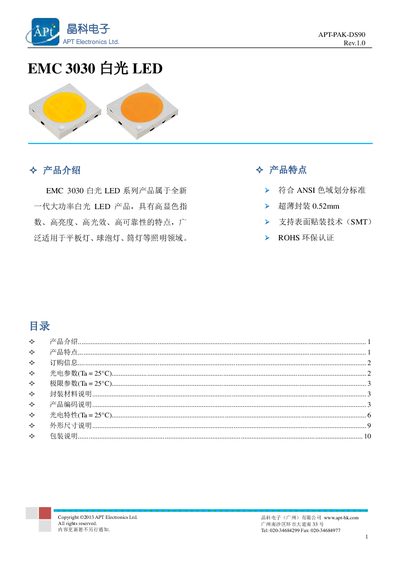

Technical data sheet for the APT Electronics EMC 3030 white LED, including optical, electrical and packaging specifications.
The EMC 3030 is a high‑performance white LED from APT Electronics, designed for applications such as panel lights, bulbs and downlights. It offers high color rendering, thin 0.52 mm SMT package and RoHS compliance.
The document provides product features, ordering codes, optical and electrical parameters, limits, package material, dimensions and packaging details, with extensive tables of performance curves and specifications. This manual is written in Chinese.
| Correlated Color Temperature (CCT) range | 2580 K – 6530 K |
|---|---|
| Forward current (IF) | 350 mA |
| Typical forward voltage | 3.4 V |
| Luminous flux at 350 mA | 90 – 130 lm |
| Color rendering index (Ra) | ≥ 70 |
| Maximum power dissipation | 1.5 W |
| Anti‑static voltage rating | 2000 V |
| Maximum reverse voltage | 5 V |
| Operating temperature range | -40 °C – +80 °C |
The typical forward voltage is 3.4 V.
The LED is rated for a maximum power dissipation of 1.5 W.
It can operate from –40 °C up to +80 °C.
