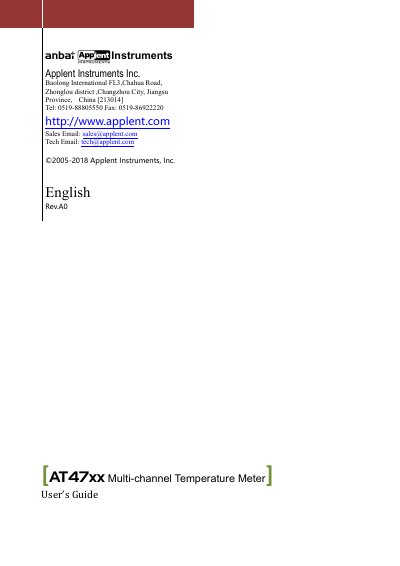

This user's guide covers safety, unpacking, operation, and specifications for the Applent Instruments AT47xx multi-channel temperature meter.
The Applent Instruments AT47xx is a multi-channel temperature meter utilizing a high-performance ARM microprocessor. It supports up to 64 channels, various thermocouple types, and features data stability with burnout detection. The device includes a USB-232C interface for data acquisition and supports USB disk storage for real-time data saving.
The manual details the instrument's unpacking, power requirements, and operating environment. It provides instructions on connecting thermocouples to the front and back panels, navigating the LCD display menus for measurement and setup, and configuring system settings such as language, date, and time. Additionally, it covers remote control capabilities via SCPI protocol and USB connections.
| Graduation | Thermocouple J, K, T, E, S, N, B, R |
|---|---|
| Measurement Range | -200.0 ℃~1800.0 ℃ |
| Resolution | 0.1℃ |
| Channel | 8 channels (can be extended to 64 channels) |
| Sample Rate | slow, med, fast |
| Voltage | 90V-260V AC |
| Power | 30VA MAX |
| Temperature Range | 0℃～55℃ |
| Humidity | < 70%RH |
| Altitude | 0~2000 m |
The warranty period is 1 year and begins on the date of shipment.
No, the instrument must not be operated in the presence of inflammable gasses or fumes.
Do not use organic solvents such as alcohol or gasoline to clean the instrument.
The device supports a maximum baud rate of 115200bps.
