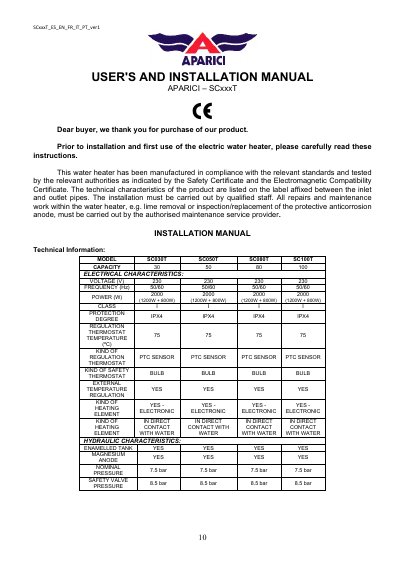

This manual provides installation instructions, technical specifications, user operation guides, and troubleshooting information for the APARICI SCxxxT…
The document serves as a comprehensive guide for the installation and use of APARICI SCxxxT series electric water heaters. It covers critical safety warnings, such as the requirement for qualified staff to perform repairs and maintenance like anode replacement. The manual details technical characteristics including capacity options (30L to 100L), electrical ratings (230V, 50/60Hz, 2000W), and hydraulic features like enamel tanks and magnesium anodes.
| Model Series | SC030T, SC050T, SC080T, SC100T |
|---|---|
| Capacity | 30L, 50L, 80L, 100L |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| Power | 2000W (1200W + 800W) |
| Protection Degree | IPX4 |
| Regulation Thermostat Temperature | 75 ºC |
| Kind of Regulation Thermostat | PTC SENSOR |
| Kind of Safety Thermostat | BULB |
| Nominal Pressure | 7.5 bar |
All repairs and maintenance work within the water heater must be carried out by the authorised maintenance service provider.
The water pressure at the electric water heater inlet must be between 1.5 and 5 bar.
Disconnect the power, call after sales service to solve the problem, repair the unit, and then reconnect it.
Installation is totally forbidden in Zone 0. It is also forbidden in Zone 1 if it is a prefabricated shower cabin.
