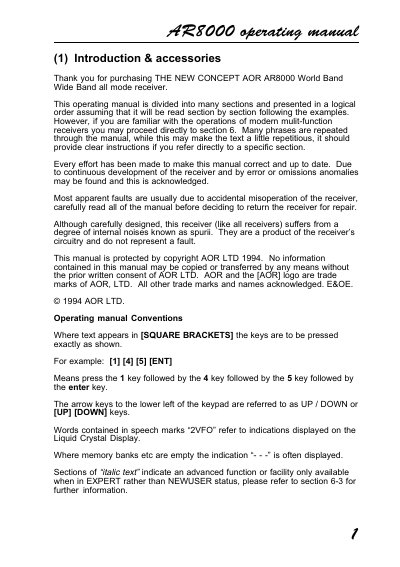

The AOR AR8000 operating manual provides setup, controls, memory, scanning and troubleshooting instructions for the wide‑band receiver.
The AOR AR8000 is a hand‑held, world‑band, all‑mode receiver covering 500 kHz to 1900 MHz. This manual guides users through accessories, power requirements, and basic operation, including VFO, memory banks, scanning, and special functions.
Detailed sections cover precautions, battery handling, RS‑232 remote control, cloning between units, and troubleshooting. The document also includes propagation notes for short‑wave listening and a full specification list.
| Frequency coverage | 500 kHz – 1900 MHz (actual acceptable 100 kHz) |
|---|---|
| Step size | Programmable in multiples of 50 Hz |
| Reception modes | AM, USB, LSB, CW, NFM, WFM |
| SSB filter | 4.0 kHz |
| Memory channels | 1000 channels (20 banks of 50) |
| Internal batteries | 4 × AA NiCad (1.2 V–1.5 V each) |
The AR8000 provides 1000 memory channels, organized into 20 banks of 50 channels each.
The receiver covers frequencies from 500 kHz up to 1900 MHz, with an acceptable input range down to 100 kHz.
