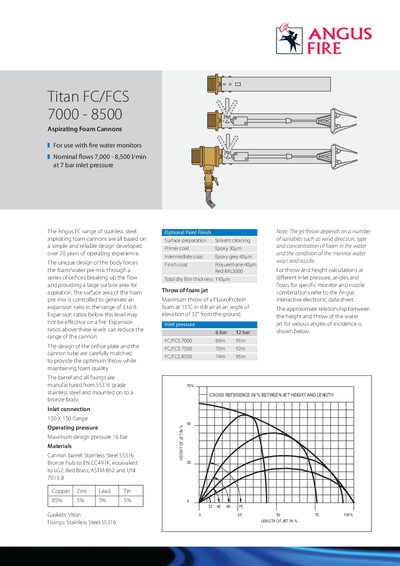

The Angus FC/FCS 7000‑8500 aspirating foam cannons are stainless‑steel fire‑suppression devices with performance data, material specs and optional finishes.
The Angus FC/FCS 7000‑8500 range of aspirating foam cannons is built from SS316 stainless steel with a bronze hub and Viton gaskets. Designed for fire‑water monitors, the cannons deliver a foam‑water mix with an expansion ratio of 3 to 8 and nominal flows of 7,000‑8,500 l/min at 7 bar inlet pressure.
Performance data includes maximum design pressure of 16 bar, optional paint finishes, and various nozzle options covering 200‑20,000 l/min. Foam spreaders and pick‑up tubes are available in standard and self‑inducing versions, with weights of 18 kg and 21 kg respectively.
| Inlet connection | 150 × 150 flange |
|---|---|
| Maximum design pressure | 16 bar |
| Barrel material | SS316 stainless steel |
| Hub material | Bronze (EN CC491K equivalent) |
| Gasket material | Viton |
| Nominal flow rate (7 bar) | 7,000‑8,500 l/min |
| Standard cannon weight | 18 kg |
| Self‑inducing cannon weight | 21 kg |
| Foam pick‑up tube diameter | 25 mm or 35 mm |
| Optional finish coat | Polyurethane 40 μm Red RAL3000 |
The maximum design pressure is 16 bar.
The barrel is made from SS316 stainless steel.
The cannons deliver 7,000‑8,500 l/min at 7 bar inlet pressure.
