ANGSEMI AS1914 Magnetic Sensor IC Datasheet

This datasheet describes the ANGSEMI AS1914, a high-performance unipolar Hall-effect sensor IC for rotor position sensing and brushless DC motors.

Brand: ANGSEMI
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 295 KB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B6D68F500430FEC2B97EF5D1868FFE63
PDF: ANGSEMI AS1914 Magnetic Sensor IC Datasheet PDF

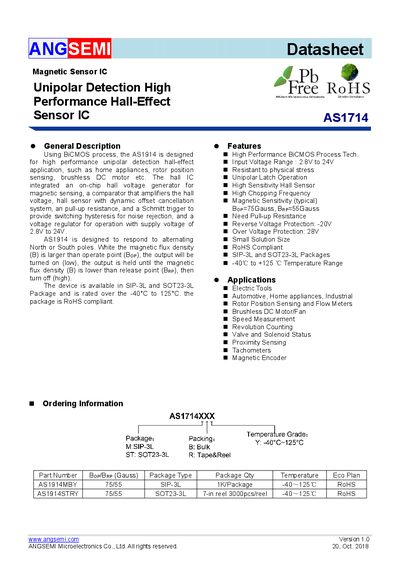

About this manual

The AS1914 is a high-performance unipolar detection Hall-effect sensor IC designed using BiCMOS process technology. It integrates an on-chip Hall voltage generator, a comparator with amplifier, a Hall sensor with dynamic offset cancellation system, a pull-up resistance, and a Schmitt trigger to provide switching hysteresis for noise rejection. The device includes a voltage regulator allowing operation with supply voltages from 2.8V to 24V.
