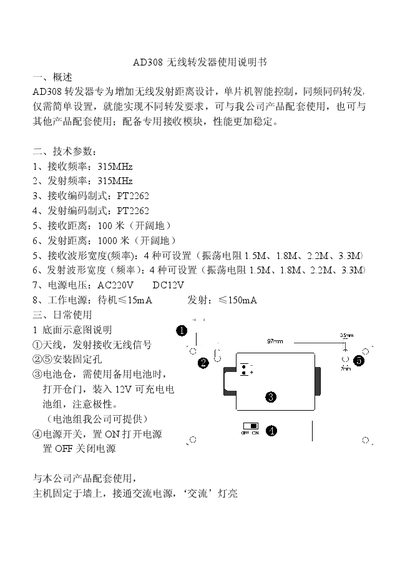

The Anda AD308 Wireless Repeater User Manual provides an overview, technical specifications, and step‑by‑step usage instructions.
The AD308 wireless repeater is designed to extend wireless transmission distance with a single‑chip intelligent control and same‑frequency, same‑code forwarding. It can operate with the company's own products or with other compatible devices, using a dedicated receiving module for stable performance.
The manual details the device’s technical parameters, power requirements, and daily operation, including how to install the antenna, connect power, set coding frequencies via jumper pins, and the timing rules for signal forwarding. This manual is written in Chinese.
| Receiving frequency | 315 MHz |
|---|---|
| Transmitting frequency | 315 MHz |
| Receiving coding method | PT2262 |
| Transmitting coding method | PT2262 |
| Receiving distance (open area) | 100 m |
| Transmitting distance (open area) | 1000 m |
| Power supply | AC 220 V / DC 12 V |
| Standby current | ≤ 15 mA |
| Transmitting current | ≤ 150 mA |
The AD308 can transmit up to 1000 meters in an open area.
The device can be powered from AC 220 V or DC 12 V.
After receiving a signal, the repeater transmits for 3 seconds, and the transmit lamp stays on for that duration.
