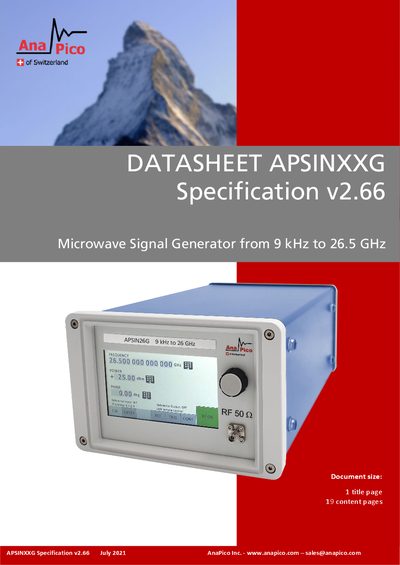

The AnaPico APSINXXG datasheet provides detailed specifications for the microwave signal generator, covering frequency range, output power, modulation…
The APSINXXG series are compact, portable microwave signal generators offering continuous frequency coverage from as low as 9 kHz up to 26 GHz with 0.001 Hz resolution. They include built‑in amplitude, frequency, phase, and pulse modulation capabilities, and can be extended with optional high‑power, fast‑switching, and battery modules.
Key specifications include a frequency range of 9 kHz–26 GHz, standard output power of –20 dBm to +15 dBm, phase‑noise performance down to –74 dBc/Hz at 10 Hz offset, and support for USB‑TMC, LAN, and GPIB interfaces. The unit operates from 6.25 VDC (20 W max), weighs ≤2.5 kg, and meets industrial environmental standards.
| Frequency resolution | 0.001 Hz |
|---|---|
| Phase‑noise (500 MHz, 10 Hz offset) | -74 dBc/Hz |
| Supported interfaces | USB‑TMC, LAN, GPIB |
| Power requirement | 6.25 V DC ±0.2 V, 20 W max |
| Operating temperature range | 0 °C to 40 °C |
Control can be performed via USB‑TMC, Ethernet LAN, or GPIB interfaces.
