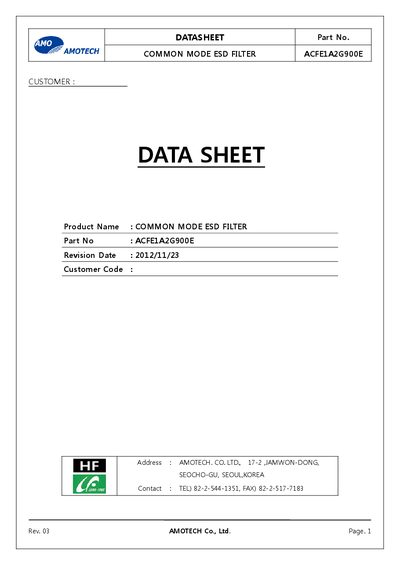

Datasheet for AMOTECH ACFE1A2G900E common‑mode ESD filter, detailing features, dimensions, electrical specs and packaging.
The ACFE1A2G900E is a multi‑layer chip common‑mode filter designed for high‑speed differential transmission lines. It provides excellent noise reduction without signal loss, includes built‑in ESD suppression devices, and complies with RoHS.
The document lists the filter’s physical dimensions, electrical characteristics, recommended soldering conditions, and packaging specifications for various box and reel formats.
| Common Mode Impedance @ 100 MHz | 90 Ω ± 25 % |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Thickness (profile) | 0.6 mm |
The filter has a low profile with a thickness of 0.6 mm.
The common‑mode impedance is 90 Ω with a tolerance of ±25 % at 100 MHz.
