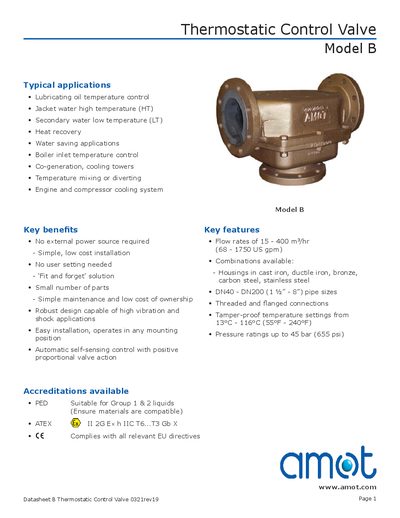

The AMOT Model B Thermostatic Control Valve datasheet provides specifications, applications, ordering information and performance data.
The AMOT Model B thermostatic control valve is designed for a wide range of temperature‑control applications, including lubricating oil cooling, jacket water heating, heat recovery, and water‑saving systems. It can be mounted in any orientation and uses an expanding‑wax element to provide proportional valve action.
The datasheet details flow rates, pressure drops, temperature settings, body and seal material options, port connection types, and ordering codes for both the Americas and Europe/Asia‑PAC regions. Technical tables give Kv/Cv values, maximum working pressures, and dimensions for each valve size.
| Flow rate range | 15 – 400 m³/hr (68 – 1750 US gpm) |
|---|---|
| Maximum pressure rating | 45 bar (655 psi) |
| Temperature setting range | 13 °C – 116 °C (55 °F – 240 °F) |
| Seal material options | Buna N/Nitrile, Viton, Neoprene |
The valve can be set between 13 °C and 116 °C (55 °F – 240 °F).
Use the USA/Canada ordering table with codes such as BO, BM, BF, etc., and specify the valve size and body material.
