This manual provides installation, operation, and maintenance instructions for Alfa Laval brazed plate heat exchangers, including safety, CIP cleaning, and…

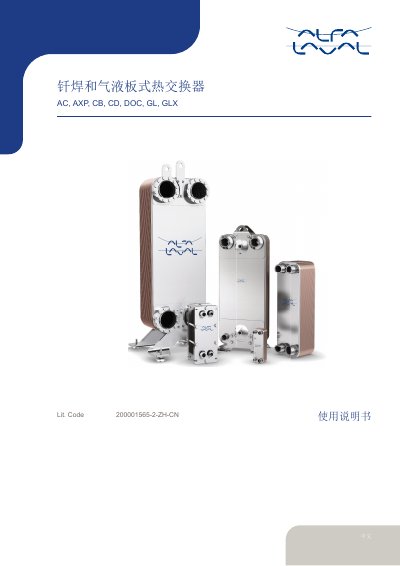

This user manual covers the installation, operation, and maintenance of Alfa Laval brazed plate heat exchangers (BHE) with Lit. Codes AC, AXP, CB, CD, DOC, GL, and GLX. It is designed for personnel familiar with the specific processes and safety requirements related to the media, pressure, and temperature of the application.
The document details procedures for unpacking, lifting, and installing the unit, as well as general operation, shutdown, and storage. It also includes specific guidance on in-situ cleaning (CIP), fault tracking for pressure drop and heat transfer issues, and safety precautions regarding personal protective equipment. This manual is written in Chinese.
| Product Type | Brazed Plate Heat Exchanger |
|---|---|
| Covered Models | AC, AXP, CB, CD, DOC, GL, GLX |
| Material Composition | Stainless steel channel plates, stainless steel or carbon steel headers, copper or nickel brazing material |
| Regulatory Compliance | REACH and RoHS |
Installation and maintenance must be performed by personnel with the knowledge and authorization required by local regulations, including pipe installation, welding, and maintenance.
The unit must be lifted using slings; it must never be lifted by the connections or any studs.
Keep the sling angle as close to 90° as possible, but never less than 60°.
Check if all valves are open, measure pressure and flow, and compare the observed pressure drop against the specified values.
