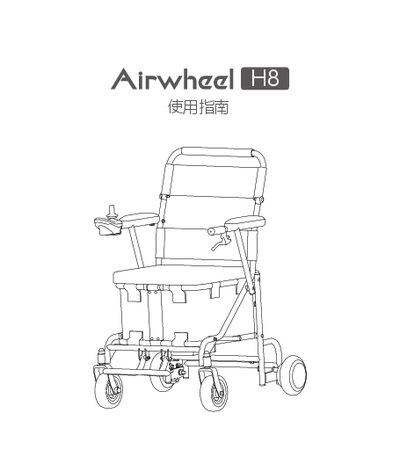

The Airwheel H8 user manual provides assembly, operation, safety, specifications, charging and warranty information for the electric mobility scooter.
This manual guides users through unpacking, assembling, and folding the H8 electric mobility scooter, including detailed diagrams for each step. It also explains how to operate the scooter using the joystick, remote app, and safety features.
Additional sections cover technical specifications, battery charging procedures, Bluetooth app pairing, safety precautions, and warranty terms, helping owners maintain and service the vehicle safely. This manual is written in Chinese.
| Dimensions (L×W×H) | 858 mm × 630 mm × 1016 mm |
|---|---|
| Weight | ≈27 kg |
| Folded dimensions | 534 mm × 630 mm × 1106 mm |
| Maximum load | 130 kg |
| Maximum speed | 6 km/h |
| Battery | Lithium‑ion 36 V 162.8 Wh |
| Charging voltage | AC 220 V, 50‑60 Hz |
| Charging time | ≈120 min (2‑4 h depending on remaining charge) |
| Front wheel | 6 inch pneumatic tire |
| Rear wheel | 6.5 inch solid tire |
| Over‑current protection | ≤18 A |
Charging the battery takes about 120 minutes (approximately 2‑4 hours depending on the remaining charge).
The H8 can travel up to 6 km/h.
The scooter can carry a maximum load of 130 kg.
