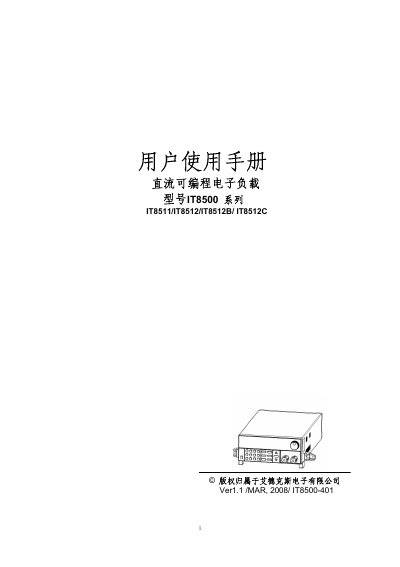

The manual provides operation, setup, specifications, and safety information for the Aideks Electronics IT8500 series programmable DC electronic load.
This user manual describes the features and functions of the Aideks Electronics IT8500 series programmable DC electronic load, including CC, CV, CR and CW operation modes, protection functions, and remote testing capabilities. It also explains the front‑panel VFD display, keyboard layout, and accessory options.
The document is organized into quick‑start procedures, detailed technical specifications, panel operation instructions, installation guidelines, application examples, and a communication‑interface reference. Safety warnings, warranty information, and troubleshooting tips are also included. This manual is written in Chinese.
| Input voltage range | 0~120 V (0~500 V for IT8512) |
|---|---|
| Input current range | 1 mA ~ 30 A (1 mA ~ 15 A for IT8512B, 1 mA ~ 60 A for IT8512C) |
| Rated power | 150 W (300 W for models IT8512, IT8512B, IT8512C) |
| Voltage measurement accuracy | ±(0.05 % + 0.02 % FS) |
| Current measurement accuracy | ±(0.1 % + 0.15 % FS) |
| Resolution (voltage) | 1 mV |
| Resolution (current) | 0.1 mA |
Use the MENU → BAUDRATE SET option and choose 4800, 9600, 19200 or 38400 bps.
